Google Sheets Integration

The Google Sheets integration connects your Google Sheets account to Wakflo, enabling you to automate spreadsheet operations, data management, and reporting workflows.

Authentication Method: OAuth 2.0

Account Requirements:

  • Active Google account
  • Google Workspace or personal Google account
  • Appropriate spreadsheet permissions
  • API access enabled

Google Sheets Actions

Spreadsheet Actions

  • Create Spreadsheet: Create a new Google Sheets spreadsheet
  • Find Worksheet: Search for a worksheet within a spreadsheet
  • Get Worksheet by ID: Retrieve a specific worksheet using its ID
  • Copy Worksheet: Duplicate an existing worksheet

Data Actions

  • Add Row in Worksheet: Insert a new row with data
  • Update Row in Worksheet: Modify existing row data
  • Read Row in Worksheet: Retrieve data from a specific row
  • Add Column in Worksheet: Insert a new column with headers and data

Google Sheets Setup Guide

Connect to Google Sheets

From the Integrations page, select Google Sheets and click “Connect”

Wakflo-connect-google-sheets

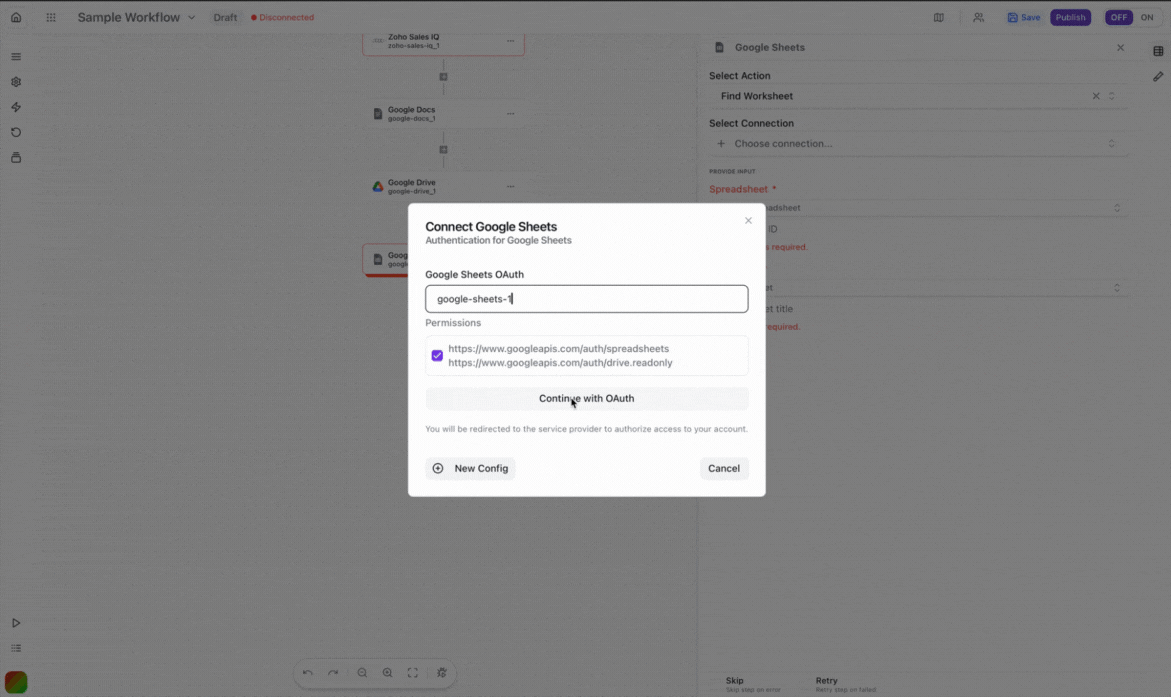

Sign in to Google

Log in to your Google account when prompted

Wakflo-signin-google-sheets

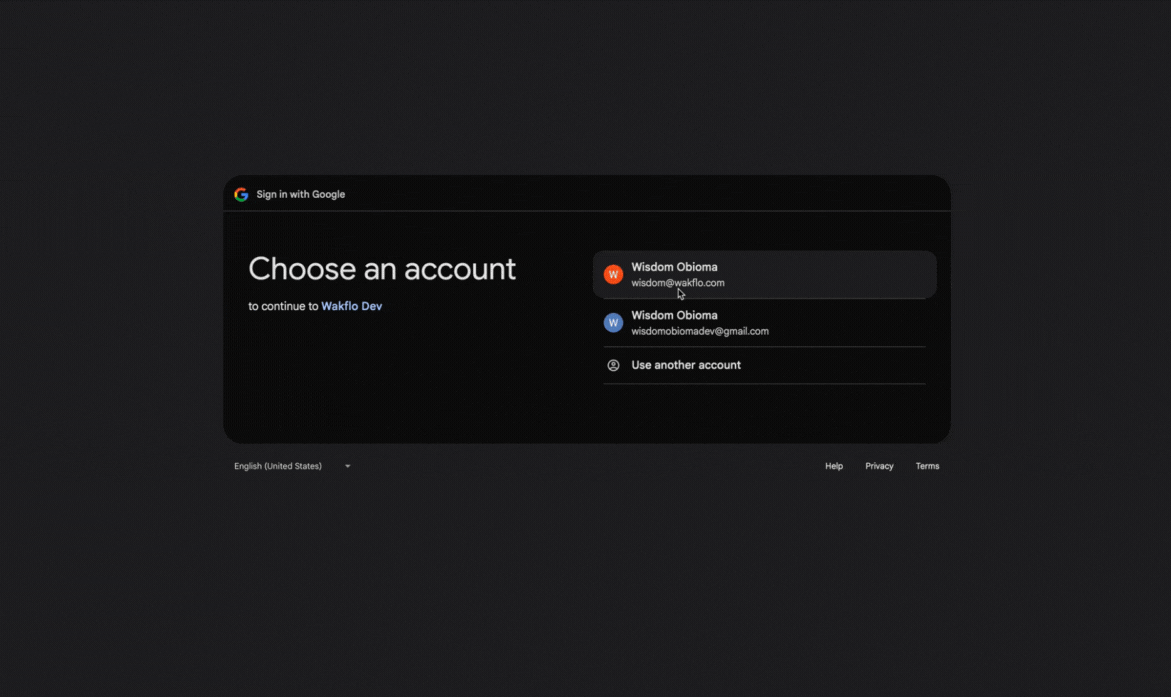

Approve Permissions

Review and grant the requested permissions for Wakflo to access your spreadsheets

Wakflo-permissions-google-sheets

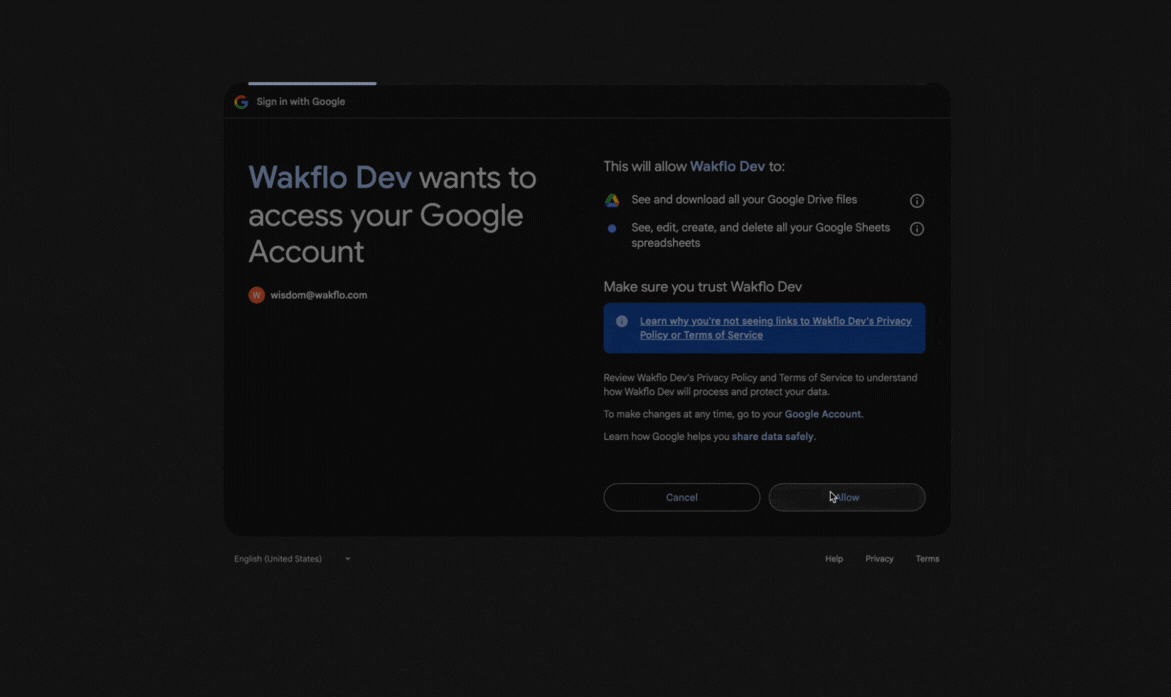

Complete Setup

Finish the connection process and start building spreadsheet automation workflows

Wakflo-permissions-google-sheets

Tip: Google Sheets uses a cell reference system (A1, B2, etc.). Understanding this notation will help you work more effectively with the integration.

Action Details

Create Spreadsheet

Creates a new Google Sheets spreadsheet in your Drive.

Parameters:

  • title (required): Name of the new spreadsheet
  • folderId (optional): Google Drive folder ID for placement
  • initialData (optional): Array of arrays for initial sheet data

Returns:

  • Spreadsheet ID
  • Spreadsheet URL
  • Default worksheet ID

Find Worksheet

Searches for a worksheet by name within a spreadsheet.

Parameters:

  • spreadsheetId (required): The ID of the spreadsheet to search in
  • worksheetName (required): Name of the worksheet to find

Returns:

  • Worksheet ID
  • Worksheet properties
  • Row and column count

Get Worksheet by ID

Retrieves a specific worksheet using its unique ID.

Parameters:

  • spreadsheetId (required): The spreadsheet ID
  • worksheetId (required): The worksheet ID

Returns:

  • Worksheet data
  • Sheet properties
  • Grid properties

Copy Worksheet

Creates a duplicate of an existing worksheet.

Parameters:

  • spreadsheetId (required): Source spreadsheet ID
  • worksheetId (required): ID of worksheet to copy
  • newName (required): Name for the copied worksheet
  • destinationSpreadsheetId (optional): Target spreadsheet (defaults to same)

Returns:

  • New worksheet ID
  • Copy properties

Add Row in Worksheet

Appends a new row of data to a worksheet.

Parameters:

  • spreadsheetId (required): The spreadsheet ID
  • worksheetName (required): Name of the worksheet
  • values (required): Array of values for the row
  • insertAt (optional): Row position (defaults to end)

Returns:

  • Updated range
  • Number of cells updated
  • Row number added

When adding rows, ensure the number of values matches the number of columns in your sheet for consistent data entry.

Update Row in Worksheet

Updates an existing row with new data.

Parameters:

  • spreadsheetId (required): The spreadsheet ID
  • worksheetName (required): Name of the worksheet
  • rowNumber (required): Row to update (1-based indexing)
  • values (required): Array of new values

Returns:

  • Updated range
  • Number of cells modified
  • Previous values (optional)

Read Row in Worksheet

Retrieves data from a specific row.

Parameters:

  • spreadsheetId (required): The spreadsheet ID
  • worksheetName (required): Name of the worksheet
  • rowNumber (required): Row to read (1-based indexing)

Returns:

  • Row values as array
  • Cell formatting info
  • Row metadata

Add Column in Worksheet

Inserts a new column with optional header and data.

Parameters:

  • spreadsheetId (required): The spreadsheet ID
  • worksheetName (required): Name of the worksheet
  • columnPosition (required): Where to insert (A, B, C, etc.)
  • header (optional): Column header text
  • values (optional): Array of values for the column

Returns:

  • Updated range
  • Column reference
  • Number of cells updated

Field Mapping

When working with Google Sheets:

  • Spreadsheet IDs are found in the URL between /d/ and /edit
  • Row numbers start at 1 (row 1 is usually headers)
  • Column letters follow Excel notation (A, B, C… AA, AB, etc.)
  • Empty cells are represented as empty strings in arrays
  • Date values should be in ISO format or serial number

API Limits & Best Practices

Limit TypeValueNotes
Read requests300 per minutePer project per user
Write requests300 per minutePer project per user
Cells per spreadsheet10 millionTotal across all sheets
Columns per sheet18,278Column ZZZ

Example Workflow: Find and Update Worksheet

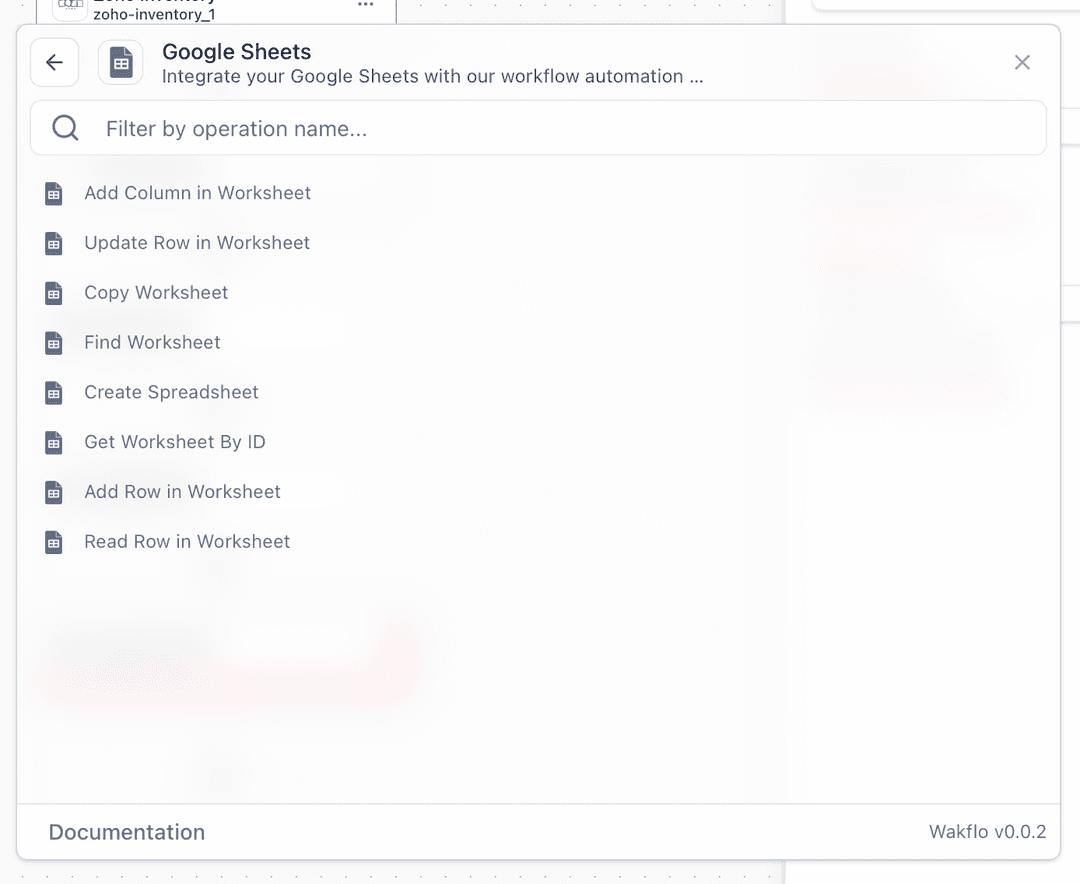

Add Google Sheets node

Search for Google Sheets and add the “Find Worksheet” action to your workflow

Add Google Sheets node

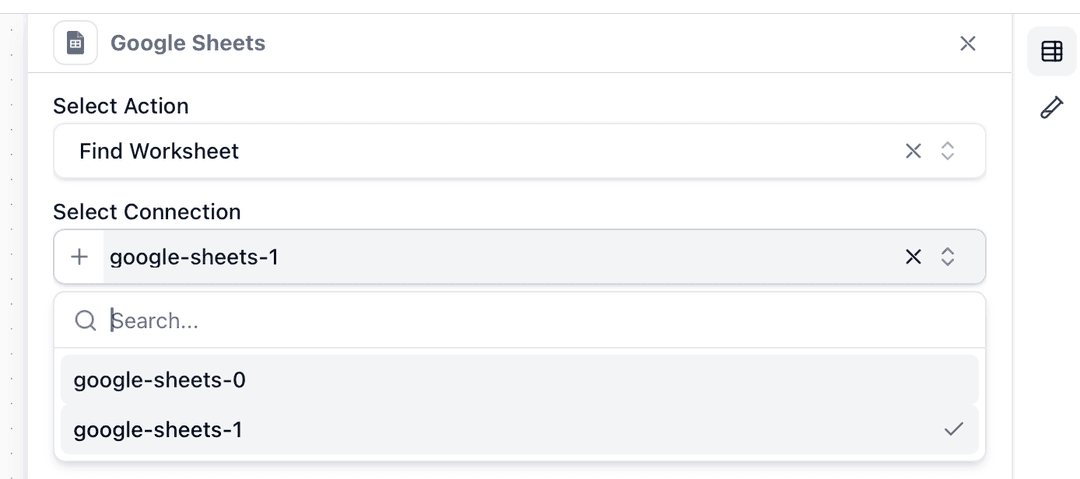

Configure connection

Select or create a Google Sheets connection

Configure connection

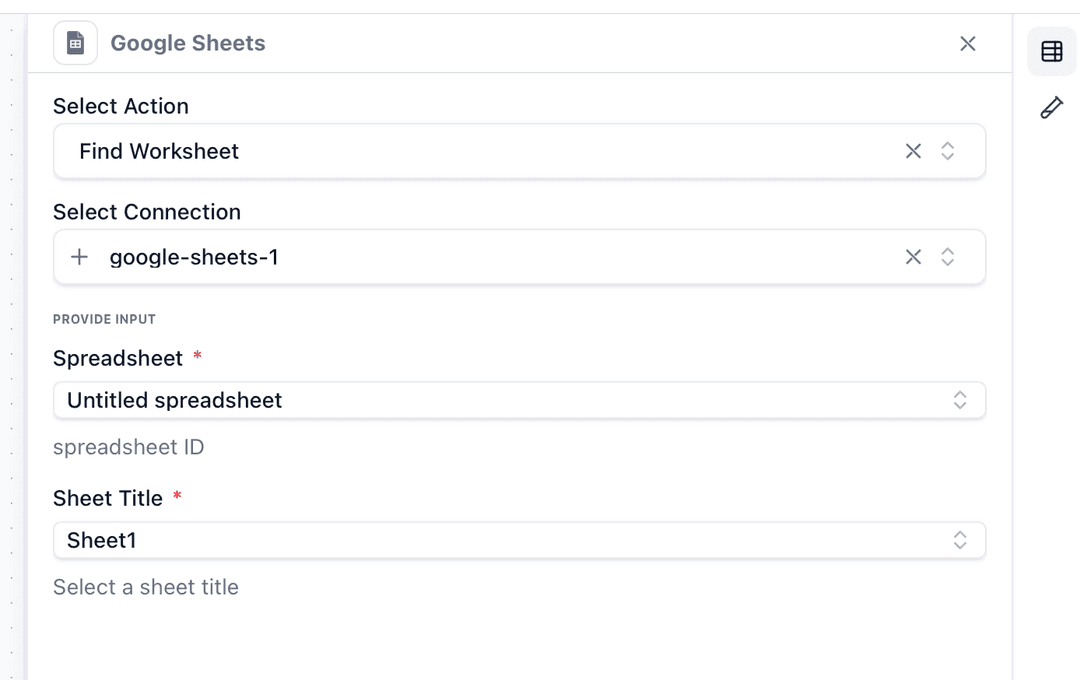

Enter search parameters

Input the spreadsheet ID and worksheet name to find

Enter parameters

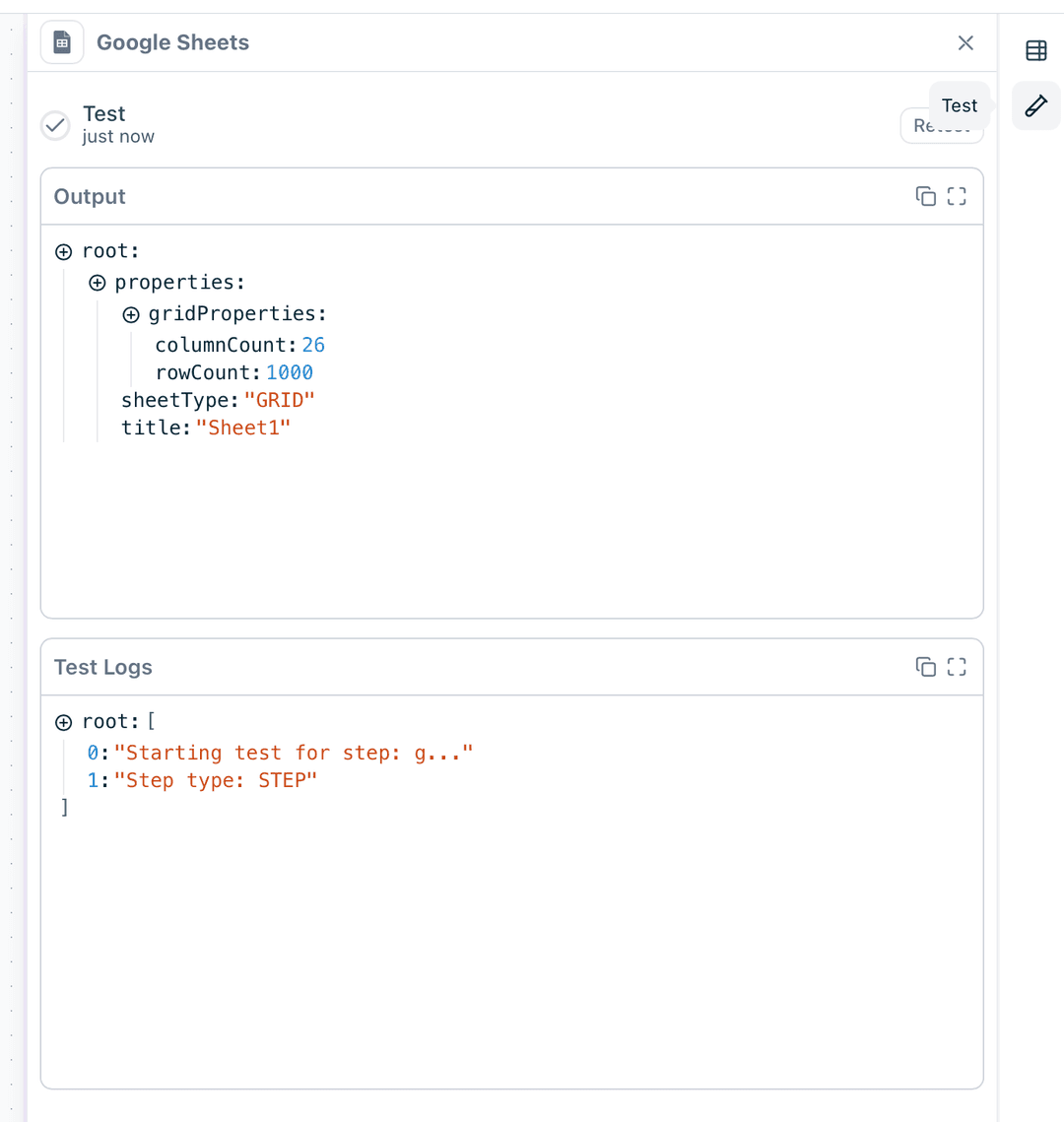

Test the action

Click “Test Step” to search for the worksheet and verify it exists

Test action

Advanced Features

Working with Formulas

When adding or updating cells with formulas:

  • Prefix formula strings with =
  • Use standard Google Sheets formula syntax
  • Cell references auto-adjust when copying

Example formula values:

  • =SUM(A1:A10)
  • =VLOOKUP(E2,A:C,3,FALSE)
  • =TODAY()

Data Validation

Implement data validation before writing:

  1. Check data types match column formats
  2. Validate date formats (YYYY-MM-DD)
  3. Ensure numeric fields don’t contain text
  4. Verify required fields are populated

Troubleshooting

Spreadsheet Not Found

  • Verify the spreadsheet ID is correct (found in URL)
  • Ensure the connected account has access to the spreadsheet
  • Check if the spreadsheet hasn’t been deleted
  • Confirm it’s not in trash

Permission Errors

  • Verify you have edit access (not just view)
  • Check if the sheet is protected
  • Ensure OAuth scopes include spreadsheet access
  • For shared sheets, confirm sharing settings

Data Type Mismatches

  • Numbers stored as text: Remove quotes and parse
  • Date formatting: Use ISO format or serial numbers
  • Boolean values: Use TRUE/FALSE (capitals)
  • Empty cells: Use empty string, not null

Rate Limit Exceeded

  • Implement exponential backoff for retries
  • Batch multiple operations together
  • Add delays between bulk operations
  • Monitor quota usage in Google Cloud Console

Best Practices

  1. Data Organization

    • Use consistent header rows
    • Implement clear naming conventions for sheets
    • Avoid special characters in worksheet names
    • Keep related data in the same spreadsheet

  2. Performance Optimization

    • Batch read/write operations when possible
    • Cache frequently accessed spreadsheet IDs
    • Minimize formula recalculations
    • Use specific ranges instead of entire sheets

  3. Error Handling

    • Always validate data before writing
    • Implement rollback logic for failed updates
    • Log all operations for debugging
    • Handle empty cells and missing data gracefully

  4. Security Considerations

    • Regularly audit spreadsheet permissions
    • Use least-privilege access principles
    • Avoid storing sensitive data in sheets
    • Implement data encryption where needed
